The Austempering line has heated salt tank working at 300 to 350 Deg C for 100% bainatic transformation. The salt is recovered to the extent of more than 90 to 93%. A spare salt tank is provided for maintenance of main salt tank.
|
PROCESS CAPABILITY
|
AUSTENIZING WITH SALT QUENCH AT 300 TO 250DEG C
|
AUSTEMPERING
|
|
|
|
|
|---|---|---|---|---|---|---|
|
OPERATING TEMPERATURE RANGE
|
830 TO 880 DEG C
|
|||||
|
FURNACE ATMOSPHERE
|
ENDO GAS
|
NITROGEN
METHANOL |
||||
|
SALIENT FEATURES
|
SPECIAL BELTS WOVEN OUT OF STAINLESS STEEL IS USED BASED ON MATERIAL TO BE HEAT TREATED
|
OFFERED WITH OR WITHOUT MUFFLE BASED ON CAPACITIES
|
BELT LIFE DEPENDS ON THE MATERIAL AND PROCESS AND USUALLY IN THE RANGE OF 1 TO 3 YEARS
|
CAN HANDLE SINGE JOB FROM FEW GRAMS TO 1 KG PIECE WEIGHT
|
||
|
HEATING SYSTEMS OFFERED
|
ELECTRIC
|
GAS/LPG/PNG/CNG/LNG
|
||||
|
MUFFLE
|
Manufactured out of DIN 1.4841 grade virgin stainless steel and helps to conserve the atmospheric gas and also uniform heating
|
|||||
|
LINE COMPOSITION
|
WEIGH FEEDER
|

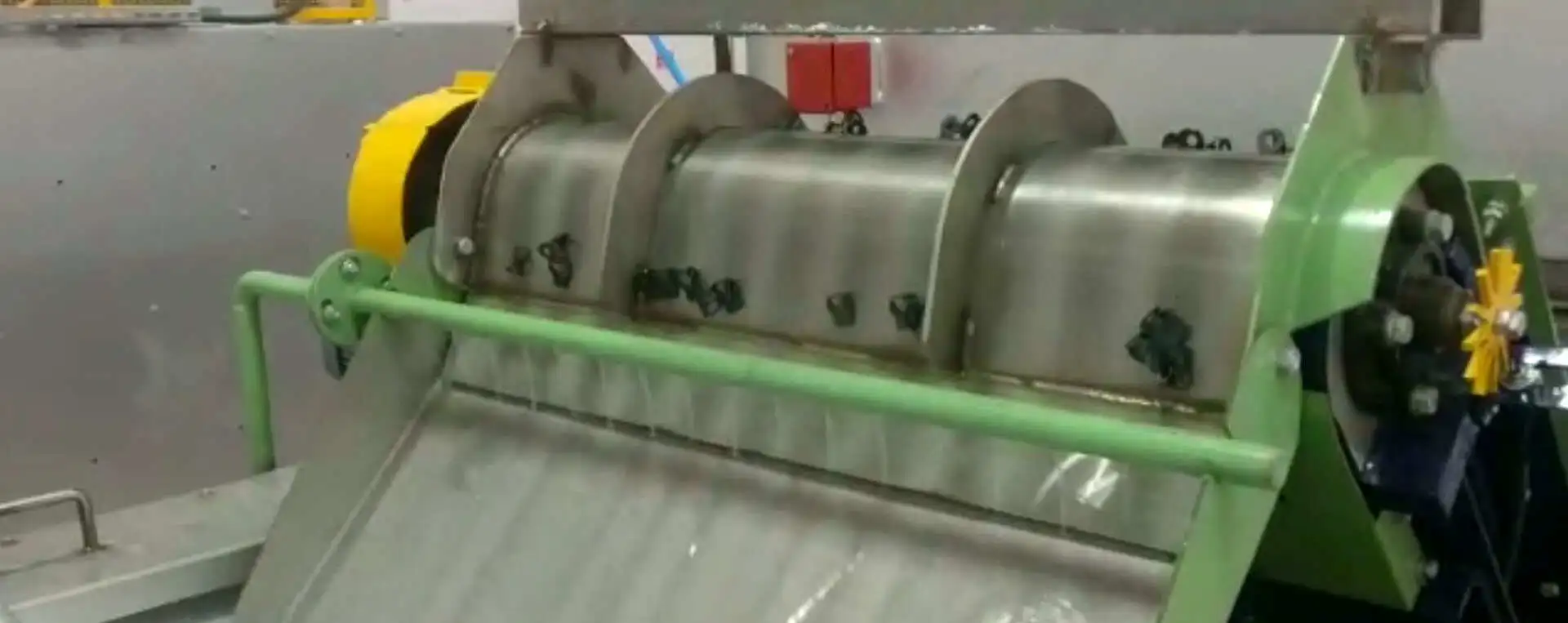

DUPLEX WASH FOR SALT RECOVERY
|
VIBRATORY FEEDER
|
SALT RECOVERY SYSTEM
|
DRIER
|
SPARE SALT TANK
|
|
QUENCH SYSTEM
|
MOLTEN SALT
|
|||||
|
|
TEMPERING FURNACE
|
PLC CONTROL WITH SCADA
|
||||
|
WELL SUITED FOR
|
CIRCLIPS, SEAT BELT TOUNGES, SAFETY SHOE TOE CAP, SPRING WASHERS,TYRE SHAVING BLADES, HANGAR CLIPS,COMPRESSOR PARTS ETC
|
|||||
|
CAPACITIES OFFERED
|
50KGS TO 500KGS/HR
|
|||||
|
T U S OFFERED
|
C Q I 9.0 VER 4.0
|
AMS2750-E
|
API 6A APPENDIX M
|
|||
CUSTOMER FIRST – CUSTOMER ON TOP
TAILOR MADE FURNACE LINES TO SUIT EVERY DISCERNING CUSTOMER.
MADE IN INDIA WITH THE BEST BRAINS
