The cast link belt furnace is unique in design and sophisticated yet rugged to handle heavy forgings and also light fasteners. As the belt rotates within the furnace the system saves more than 25% energy. Further the loading is either in single layer or very thinly spread making the items get heated uniformly with consistent as heat treated properties.
|
PROCESS CAPABILITY
|
AUSTENIZING/THROUGH HARDENING
|
CARBURIZING UP TO 0.3mm CASE DEPTH
|
CARBO-NITRIDING
|
TEMPERING
|
NORMALIZING
|
|---|---|---|---|---|---|
|
OPERATING TEMPERATURE RANGE
|
830 TO 1050 DEG C
|
||||
|
FURNACE ATMOSPHERE
|
NORMAL AIR
|
ENDO GAS
|
NITROGEN
METHANOL |
||
|
SALIENT FEATURES
|

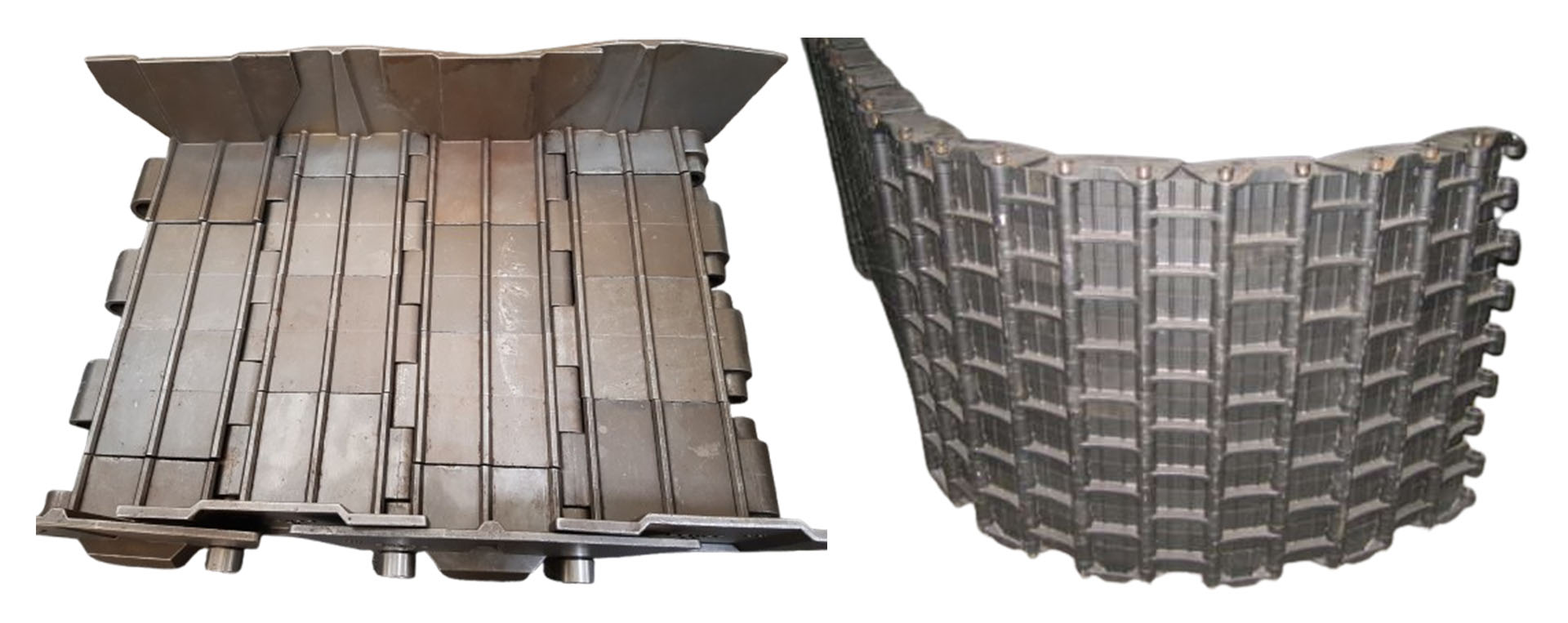

BELT MADE OF CAST AND FORGE ALLOY STEEL
|
BELT ROTATES INSIDE THE FURNACE AND HENCE NO ENERGY LOSS LIKE MESH BELT FURNACES
|
BELT LIFE IN THE RANGE OF 10 TO 12 YEARS
|
CAN HANDLE SINGE JOB FROM 1KG TO 10 KGS PIECE WEIGHT
|
|
|
HEATING SYSTEMS OFFERED
|
ELECTRIC
|
GAS/LPG/PNG/CNG/LNG
|
|||
|
LINE COMPOSITION
|
WEIGH FEEDER
|
TRANSFER CONVEYOR
|
VIBRATORY FEEDER
|
PRE-AND POST WASH
|
DEOILER FEEDER
|
|
QUENCH SYSTEM
|
OIL
|
WATER
|
POLYMER
|
||
|
|
TEMPERING FURNACE
|
PLC CONTROL WITH SCADA
|
|||
|
WELL SUITED FOR
|
AUTOMOTIVE AND DEFENCE AND AEROSPACE FORGINGS
|
FASTENERS
|
RAILWAY ELASTIC RAIL CLAMPS
|
||
|
CAPACITIES OFFERED
|
500KGS TO 2000KGS/HR
|
||||
|
T U S OFFERED
|
C Q I 9.0 VER 4.0
|
AMS2750-E
|
API 6A APPENDIX M
|
CUSTOMER FIRST – CUSTOMER ON TOP
TAILOR MADE FURNACE LINES TO SUIT EVERY DISCERNING CUSTOMER.
MADE IN INDIA WITH THE BEST BRAINS
