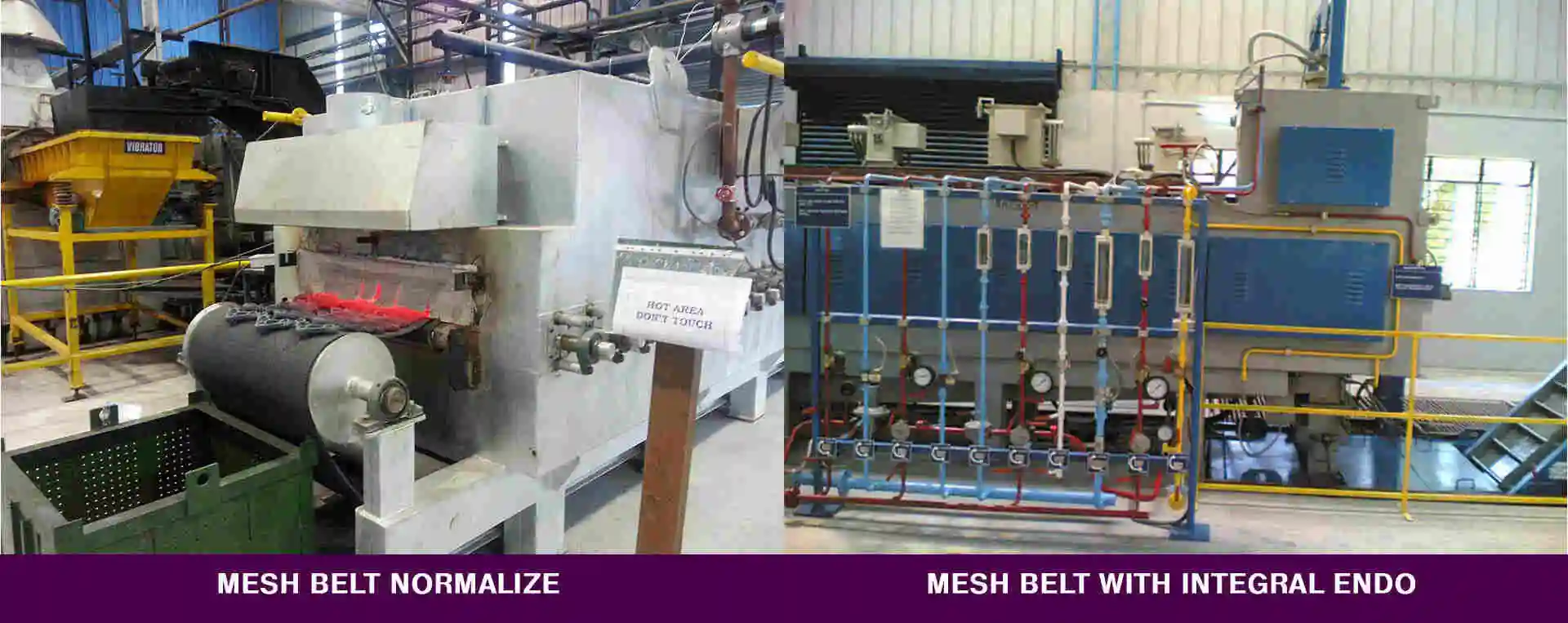

The Mesh Belt system is proven Heat Treatment equipment with Muffle helping to conserve the use of atmospheric gas and also assist uniform heating. The system is offered with Insitu Endo gas generator or an external generator based on the requirement.
|
PROCESS CAPABILITY
|
AUSTENIZING/THROUGH HARDENING
|
CARBURIZING UP TO 0.3mm CASE DEPTH
|
CARBO-NITRIDING
|
TEMPERING
|
NITRO CARBURIZING
|
NORMALIZING
|
|---|---|---|---|---|---|---|
|
OPERATING TEMPERATURE RANGE
|
830 TO 1050 DEG C
|
|||||
|
FURNACE ATMOSPHERE
|
NORMAL AIR
|
ENDO GAS
|
NITROGEN
METHANOL |
CRACKED AMMONIA
|
HYDROGEN PLUS NITROGEN
|
|
|
SALIENT FEATURES
|
SPECIAL BELTS WOVEN OUT OF STAINLESS STEEL IS USED BASED ON MATERIAL TO BE HEAT TREATED
|
BELT MOVES INSIDE THE MUFFLE WITH THE JOB
|
BELT LIFE DEPENDS ON THE MATERIAL AND PROCESS AND USUALLY IN THE RANGE OF 1 TO 3 YEARS
|
CAN HANDLE SINGE JOB FROM FEW GRAMS TO 1 KG PIECE WEIGHT
|
||
|
HEATING SYSTEMS OFFERED
|
ELECTRIC
|
GAS/LPG/PNG/CNG/LNG
|
||||
|
MUFFLE
|
Manufactured out of DIN 1.4841 grade virgin stainless steel and helps to conserve the atmospheric gas and also uniform heating
|
|||||
|
LINE COMPOSITION
|
WEIGH FEEDER
|
|
VIBRATORY FEEDER
|
PRE-AND POST WASH
|
|
DEOILER FEEDER
|
|
QUENCH SYSTEM
|
OIL
|
WATER
|
POLYMER
|
|||
|
|
TEMPERING FURNACE
|
PLC CONTROL WITH SCADA
|
||||
|
WELL SUITED FOR
|
SMALL NEEDLES, RING TRAVELLERS, BEARING CUPS, MACHINED COMPONENTS ETC
|
SMALL FASTENERS
|
ENGINE VALVES
|
SMALL AERO SPACE COMPONENTS
|
||
|
CAPACITIES OFFERED
|
500KGS TO 2000KGS/HR
|
|||||
|
T U S OFFERED
|
C Q I 9.0 VER 4.0
|
AMS2750-E
|
API 6A APPENDIX M
|
|||
CUSTOMER FIRST – CUSTOMER ON TOP
TAILOR MADE FURNACE LINES TO SUIT EVERY DISCERNING CUSTOMER.
MADE IN INDIA WITH THE BEST BRAINS
